Use Cases with Public and Secure Serve for Multiple Authentication Mechanisms
Use Case 1: HTTP Basic or NTLM HTTP Controlled-Access Content with Public Serve
|
•
|
events.abc.int is a simple web server that uses HTTP Basic authentication. This server contains information about internal company events.
|
|
•
|
announce.abc.int is a Microsoft IIS web server that uses Integrated Windows Authentication over NTLM HTTP. This server contains announcements for employees.
|
|
•
|
directory.abc.int is another Microsoft IIS server. This server provides phone and office location information about employees. For the purpose of this example, let’s suppose that content from this server is best provided by a web feed.
|
All these servers are located on the same domain, abc_corp. Although authentication is required by each of these servers, this information isn’t sensitive. ABC Company wants to serve the snippet results as public content, viewable by any employee. There is no reason to require the search appliance to perform document-level authentication when serving results.
ABC Company has these people who interact with this content:
Setting up Crawl and Index
First, the system administrator creates a user account for the search appliance, called ABCsearch, and sets up access policies that ensure that the ABCsearch user account is authorized to view all files on events.abc.int, and announce.abc.int. The feed process on directory.abc.int has its own account with similar permissions, called ABCfeeder.
Next, the search appliance administrator logs into the Admin Console and performs these actions:
|
1.
|
To provide the search appliance with credentials for crawl and index, Sandra opens Content Sources > Web Crawl > Secure Crawl > Crawler Access, and adds rows using the account names and passwords given to her by the system administrator:
|
Here, omitting the domain for events.abc.int instructs the search appliance to authenticate using HTTP Basic. For all other servers in this example, the domain entry tells the search appliance to authenticate against a Microsoft IIS Server using NTLM HTTP.
Because Basic Authentication sends credentials as base-64 encoded clear text, the patterns for events.abc.int all use HTTPS, which protects user names and passwords. Although the use of HTTPS is recommended for Basic Authentication, the search appliance can also authenticate over HTTP. Make Public is selected for all URL patterns.
|
2.
|
Under Content Sources > Web Crawl > Start and Block URLs, Sandra clicks Add under Start URLs and adds the URL patterns "https://events.abc.int/" and "https://announce.abc.int/".
|
|
3.
|
Sandra also adds the URL patterns "https://events.abc.int/", "https://announce.abc.int/", and "https://directory.abc.int/" under Follow Patterns.
|
|
4.
|
Finally, she clicks Save to save the changes.
|
|
5.
|
She pushes a web feed to the appliance that includes the URLs from directory.abc.int, using the following syntax:
|
<record url="http://directory.abc.int/" authmethod="ntlm">
Because the record has authmethod=ntlm, the search appliance attempts to authenticate using NTLM HTTP when crawling this content.
Populating the Index for Controlled-Access Content

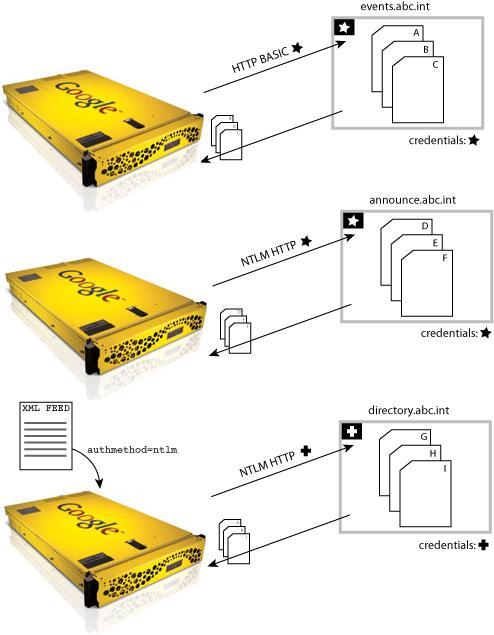

During crawl, the search appliance goes through each of the content sources that have been configured, and uses the credentials under Crawler Access to obtain the controlled-access content.
The search appliance can use multiple protocols to crawl and index controlled-access content.
|
•
|
The search appliance connects to events.abc.int over HTTPS. The web server asks for credentials using HTTP Basic Authentication: the search appliance provides the username “ABCsearch” and the password entered in the Admin Console. The web server verifies that ABCsearch has access to view documents on events.abc.int. The search appliance crawls through all documents on events.abc.int and adds them to the index.
|
|
•
|
The search appliance connects to announce.abc.int over HTTPS. The Microsoft IIS server asks for credentials using Windows Authentication: the search appliance provides an NTLM HTTP message that contains the username “ABCsearch” and a response based on the password entered in the Admin Console. The IIS server verifies that ABCsearch has access to view documents on announce.abc.int. The search appliance crawls through all documents on announce.abc.int and adds them to the index.
|
|
•
|
The search appliance receives a web feed that directs it to directory.abc.int with authmethod=ntlm. It connects to directory.abc.int over HTTPS. The Microsoft IIS server asks for credentials using Windows Authentication: the search appliance provides an NTLM HTTP message that contains the username “ABCfeeder” and a response based on the password entered in the Admin Console. The IIS server verifies that ABCfeeder has access to view documents on directory.abc.int. The search appliance crawls through all documents on directory.abc.int and adds them to the index.
|
Serving Controlled-Access Content to the User as Public Content
ABC Company has decided to make the search results public: the events, announce, and directory servers control access to their content, but employees can discover the information they need by performing a search query.
|
1.
|
The search appliance checks to see whether any of the content sources require authorization. Although the search appliance had to provide credentials to index the content, the Make Public? checkbox is selected for all of ABC Company’s content sources. All content in the index is labeled as public: no authorization check is required.
|
|
3.
|
Eric sees search results from events.abc.int, announce.abc.int, and directory.abc.int that match the query “Maria Jones director”. For instance, Eric finds an all-hands meeting that Maria scheduled from events, a notice about her promotion from announce, and her office phone number and location from directory.
|
Use Case 2: One Set of Credentials for Multiple Authentication Mechanisms
|
•
|
http://insidealpha.com is the URL for content protected by a single sign-on (SSO) server.
|
|
•
|
apacheserver.alphainside.com is a server for content protected by a custom apache script that uses cookies from the SSO system.
|
|
•
|
comp.alpha.int is a simple web server that uses HTTP Basic authentication. This server hosts some personnel information from North America.
|
|
•
|
pers.def.int is a Microsoft IIS web server that uses NTLM v2 HTTP. This server hosts global personnel information, excluding North America.
|
|
•
|
AlphaLCM is a connector manager with one connector instance that is used to traverse and index information (including some global personnel information) from AlphaLyon’s Documentum content management system.
|
There is a single corporate-wide set of credentials for each employee.
AlphaLyon has these people who interact with this content:
Setting Up Crawl and Index
Ashish, the system administrator creates a user account for the search appliance, called ALSearch, and sets up access policies that ensure that the ALSearch user account is authorized to view all files on comp.alpha.int, and pers.def.int.
|
1.
|
To provide the search appliance with credentials for crawling and indexing comp.alpha.int, which is protected by HTTP Basic Authentication, and pers.def.int, which uses NTLM HTTP, Tanya opens Content Sources > Web Crawl > Secure Crawl > Crawler Access.
|
Tanya uses the account name and password for ALSearch that was provided by Ashish, the system administrator. Note that, for http://comp.alpha.int/, the In Domain text box is cleared. This cleared checkbox instructs the search appliance to authenticate using HTTP Basic. For http://pers.def.int/, Tanya supplies the domain, which tells the search appliance to authenticate against the server using NTLM HTTP.
The Make Public checkbox is also cleared. The search appliance has full access to the server, but labels any results from them as “secure” and requires authentication and authorization checks before displaying secure content in the search results.
|
3.
|
Tanya clicks Save.
|
|
4.
|
Next, Tanya needs to provide the search appliance with credentials for crawling and indexing content protected by single sign-on systems (http://insidealpha.com and apacheserver.alphainside.com), so she opens Content Sources > Web Crawl > Secure Crawl > Forms Authentication.
|
|
5.
|
In the Sample Forms Authentication protected URL box, Tanya enters http://insidealpha.com/inside.html.
|
|
6.
|
In the URL Pattern for this rule box, Tanya enters http://insidealpha.com/ and clicks Create a New Forms Authentication Rule.
|
|
7.
|
The search appliance stores the rule for use in crawl for all content under http://insidealpha.com/. When a cookie expires, the search appliance uses the stored crawler account to request a new session cookie.
|
8.
|
Next, Tanya uses the Content Sources > Web Crawl > Secure Crawl > Forms Authentication page to add credentials for crawling and indexing apacheserver.alphainside.com. In the Sample Forms Authentication protected URL box, Tanya enters apacheserver.alphainside.com/alphainsider.html.
|
|
9.
|
|
11.
|
The search appliance stores the rule for use in crawl for all content under apacheserver.alphainside.com/. When a cookie expires, the search appliance uses the stored crawler account to request a new session cookie.
|
12.
|
Next, to get the controlled-access content crawled and indexed, Tanya opens Content Sources > Web Crawl > Start and Block URLs.
|
|
13.
|
|
14.
|
|
15.
|
To check that the crawling system is currently running, Tanya opens Content Sources > Diagnostics > Crawl Status. The crawl status indicates that the crawl system is running.
|
Populating the Index with Controlled-Access Content
During crawl, the search appliance goes through each of the content sources that have been configured, and obtains the controlled-access content by using the HTTP Basic Authentication credentials configured on Content Sources > Web Crawl > Secure Crawl > Crawler Access and the forms authentication credentials configured Content Sources > Web Crawl > Secure Crawl > Forms Authentication.
For content on comp.alpha.int, which is protected by HTTP Basic Authentication:
|
1.
|
The search appliance connects to http://comp.alpha.int/.
|
|
3.
|
The search appliance provides the username “ALSearch” and the password entered in the Admin Console.
|
|
4.
|
|
5.
|
The search appliance crawls through all documents on comp.alpha.int and adds them to the index.
|
For content on pers.def.int, which is protected by NTLM HTTP:
|
1.
|
The search appliance connects to pers.def.int over HTTPS.
|
|
3.
|
The search appliance provides an NTLM HTTP message that contains the username “ALSearch” and a response based on the password entered in the Admin Console.
|
|
4.
|
The IIS server verifies that ALSearch has access to view documents on pers.def.int. The search appliance crawls through all documents on pers.def.int and adds them to the index.
|
For content on http://insidealpha.com and apacheserver.alphainside.com, which are protected by forms authentication:
|
1.
|
First, the search appliance connects to http://insidealpha.com/.
|
|
3.
|
the search appliance recognizes the URL pattern and provides the cookie that was set in the Admin Console under Content Sources > Web Crawl > Secure Crawl > Forms Authentication.
|
|
4.
|
The web server verifies that crawler has access to view documents in the controlled access directory.
|
|
5.
|
The search appliance crawls through all documents on http://insidealpha.com/ and adds them to the index. Because these documents were accessed through a forms authentication rule with Make Public cleared, they are labeled as “secure” in the index.
|
|
6.
|
Next, the search appliance connects to apacheserver.alphainside.com/ and repeats steps 2 through 5 by interacting with the apache server.
|
When the crawl completes, the index contains content from the sources.
Setting Up Serve
|
1.
|
First, to add the single sign-on server http://insidealpha.com to the credential group, Tanya opens Search > Secure Search > Universal Login Auth Mechanisms > Cookie.
|
|
2.
|
Tanya types http://insidealpha.com/inside.html, a sample URL for the site, in the Sample URL box. Options for adding another cookie-based domain appear on the page. The Default credential group is already selected.
|
|
3.
|
Tanya clicks Save.
|
|
4.
|
Next, to add apacheserver.alphainside.com, Tanya types apacheserver.alphainside.com/alphainsider.html, a sample URL for the content protected by a custom apache script, in the Sample URL box and clicks Save.
|
|
5.
|
Next, to add the comp.alpha.int web server, which uses HTTP Basic authentication, to the credential group, Tanya clicks the HTTP tab.
|
|
6.
|
Tanya types http://comp.alpha.int/na.html, a sample URL for the site in the Sample URL box, and clicks Save.
|
|
7.
|
To add pers.def.int, which uses NTLM HTTP authentication, Tanya clicks the NTLM checkbox, types pers.def.int/emea.html in the Sample URL box and clicks Save.
|
|
9.
|
Tanya types AlphaLCM, the name of the registered connector manager, in the Connector Manager Name box and clicks Save.
|
Serving Controlled-Access Content to a User with One Set of Credentials
|
1.
|
Joseph opens the search page in a web browser, enters a query for “Pat Smith,” clicks the public and secure content radio button, and clicks Search.
|
|
2.
|
The Universal Login Form checks the existing cookies that Joseph already has to see whether the credential group is already satisfied.
|
|
3.
|
The search appliance prompts Joseph by presenting the Universal Login Form.
|
|
4.
|
|
6.
|
Use Case 3: Two Sets of Credentials for Two Connectors
AlphaLyon, from use case 2 (see Use Case 2: One Set of Credentials for Multiple Authentication Mechanisms), has acquired ABC company, from use case 1 (see Use Case 1: HTTP Basic or NTLM HTTP Controlled-Access Content with Public Serve). Content for the merged companies is managed by two different content management systems (CMSs).
Employees of the merged companies have two corporate-wide sets of credentials:
AlphaLyon has these people who interact with this content:
This use case assumes that Tanya has added connectors for Documentum and Livelink and the content from the CMS’s has been traversed and fed into the search appliance. For information about adding connectors, see Introducing Connectors.
Creating a Credential Group
|
1.
|
Tanya opens Search > Secure Search > Universal Login.
|
|
2.
|
Tanya creates a credential group for Livelink by typing the name for the new credential group, ABCLivelink, in the Credential Group Name box.
|
|
3.
|
Tanya types a display name for the new credential group in Credential Group Display Name.
|
|
4.
|
Tanya does not click Require a user-name for this credential group? because no ACLs need it.
|
|
5.
|
Tanya checks Group is optional? because not everyone has a login to this credential group.
|
|
6.
|
Tanya clicks Save.
|
Adding Connectors to the Credential Groups
|
1.
|
First, to add the Documentum connector to the Default credential group, Tanya clicks Search > Secure Search > Universal Login Auth Mechanisms > Connectors.
|
|
2.
|
|
3.
|
|
4.
|
Next, to add the Livelink connector to the ABCLivelink credential group, Tanya creates a new entry by selecting the ABCLivelink credential group from the pull-down menu, typing a Mechanism Name, and clicking Save.
|
Serving Controlled-Access Content to a User with Two Sets of Credentials
|
1.
|
Leslie opens the search page in a web browser and enters a query for “Island,” clicks the public and secure content radio button, and clicks Search.
|
|
2.
|
The Universal Login Form checks to see whether the two credential groups are already satisfied.
|
|
3.
|
The search appliance prompts Leslie for her user credentials (user name and password) for both systems by presenting the Universal Login Form with two logins—one for the system in the Default credential group and one for the system in the ABCLivelink credential group.
|
|
4.
|
|
6.
|
|
9.
|
Use Case 4: Windows Authentication with Kerberos Tickets for Secure Serve
AlphaLyon is going to upgrade the following servers:
|
•
|
products.alphalyon.int is a simple web server that uses HTTP Basic authentication. This server contains information about the company’s products.
|
|
•
|
news.alphalyon.int is a Microsoft IIS web server that uses NTLM HTTP. This server contains news announcements.
|
|
•
|
emp.alphalyon.int is another Microsoft IIS server that uses NTLM HTTP. It provides internal information about employees, such as email addresses and phone numbers.
|
|
•
|
sales.alphalyon.int is a web server that uses HTTP Basic authentication. This server stores general information used by everyone on the sales team.
|
|
•
|
customers.alphalyon.int is a Microsoft IIS server that uses NTLM HTTP. It stores customer directory information, such as phone numbers and addresses.
|
This use case is based on the following assumptions:
|
•
|
Tanya has already set up crawl and index for the protected content by providing the search appliance with credentials on Content Sources > Web Crawl > Secure Crawl > Crawler Access.
|
|
•
|
The following two servers have been crawled with Make Public selected: products.alphalyon.int and news.alphalyon.int and their content is public. Content on the other servers is secure.
|
Once again, AlphaLyon has these people who interact with this content:
Obtaining a keytab File
Tanya performs the following actions:
|
1.
|
|
2.
|
Ashish sends Tanya a keytab file named searchappliance.keytab.
|
Configuring and Activating Kerberos Support
|
1.
|
Tanya opens Search > Secure Search > Universal Login Auth Mechanisms > Kerberos.
|
|
2.
|
Under Specify a Kerberos Key Distribution Center (KDC) / Windows Domain Controller (DC), Tanya enters hal.alphalyon.com in the Kerberos KDC Hostname box, and clicks Save to save the change.
|
|
3.
|
Under Import a Kerberos Service Key Table (“keytab”) File, Tanya clicks Choose File and navigates to her Desktop folder.
|
|
4.
|
She selects the keytab file, searchappliance.keytab, and clicks OK to upload the Kerberos key table file to the search appliance.
|
|
5.
|
She clicks Import Kerberos Keytab File to save the change.
|
|
6.
|
In the section labeled Activate IWA (Integrated Windows Authentication) / Kerberos Authentication, she clicks Enable Kerberos support, and clicks Save. Because she is configuring Kerberos support for the Default credential group, she does not need to select a credential group from the pull-down menu.
|
Serving Controlled-Access Content to the User as Secure Content with Kerberos Authentication
Search by an Authorized User
|
2.
|
The search appliance filters the list of results as specified by the front end that applies to Salim’s search. It applies Filters defined in Search > Search Features > Front Ends > Filters and excludes all URLs listed in Search > Search Features > Front Ends > Remove URLs.
|
|
8.
|
Using Salim’s cookie, the search appliance performs an HTTP HEAD request for each of the secure documents in the list of results. If the server returns “HTTP status 401” (not authorized) for a document, or the authorization attempt is inconclusive, the document is removed from the list of potential results. Because Salim is a member of the policy group sales, the search appliance should be authorized to request all of the secure sales collateral materials when passing his credentials.
|
|
•
|
The URL is public or Salim has authorization to view the URL.
|
|
10.
|
The search appliance directs Salim’s browser to the search results page that contains all public and secure documents that match the query “AlphaLyon product fall sales report”. Salim should see results from products.alphalyon.int, news.alphalyon.int, emp.alphalyon.int, sales.alphalyon.int, and customers.alphalyon.int.
|
Search by an Unauthorized User
Eric isn’t a member of the sales team, but he’s also interested in the new AlphaLyon Product release and wants to know when the sales figures will be posted. Eric opens the search page in a web browser and enters the same query for AlphaLyon Product fall sales report. The search appliance performs the following steps before sending Eric’s browser to the search results page:
|
2.
|
The search appliance filters the list of results as specified by the front end that applies to Eric’s search. It applies Filters defined in Search > Search Features > Front Ends > Filters and excludes all URLs listed in Search > Search Features > Front Ends > Remove URLs.
|
|
8.
|
Using Eric’s cookie, the search appliance performs an HTTP HEAD request for each of the secure documents in the list of results. If the server returns “HTTP status 401” (not authorized) for a document, or the authorization attempt is inconclusive, the document is removed from the list of potential results. Because Eric isn’t a member of the policy group sales, the search appliance fails its authorization check using Eric’s credentials. It removes all of the secure sales collateral materials from the list of potential results.
|
|
•
|
The URL is public or Eric has authorization to view the URL.
|
|
10.
|
The search appliance directs Eric’s browser to the search results page that contains all public documents that match the query “AlphaLyon product”. Eric should see results from products.alphalyon.int and news.alphalyon.int, but unlike Salim, he doesn’t see any results from emp.alphalyon.int, sales.alphalyon.int or customers.alphalyon.int.
|
